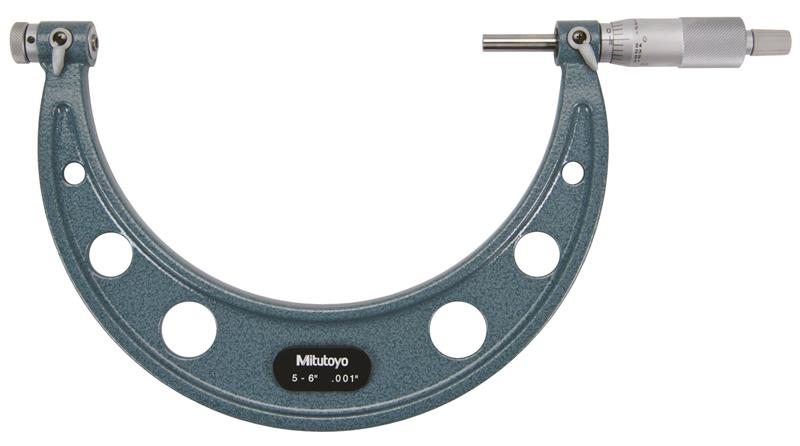

5-6 Inch Measuring Range, 0.001 Graduation, Ratchet Thimble, High Speed Steel Face, Interchangeable Anvil Thread Micrometer
- Item Code: 126-142
- Brand: Mitutoyo
- Unit Size: 1
Description
5-6 In, .001 In, Mechanical Screw Thread Micrometer, Ratchet Stop, Optional Anvils Available
Features
Back To Top- Has optional 60 and 55 degree V-anvil and conical spindle made of high-grade steel, hardened and precision ground.
- Supplied in a fitted plastic case.
- With Ratchet Stop for constant measuring force.
Tech Specs
Back To Top| Case Part Number | 453221 |
|---|---|
| Clutch | Ratchet Stop |
| Primary Measuring Range Lower - Inch | 5 In |
| Case Material | Plastic Case |
| Resolution or Graduation | .001 In |
| Spindle Face | Variable |
| Brand | Mitutoyo |
| Mechanical or Digital | Mechanical |
| Primary Measuring Range Upper - Inch | 6 In |
| Primary (Outside Diameter) Contact Point Material | Hardened Steel |
| Thimble Diameter Measurement | 18mm |
| Accuracy | ±.00025 In |
| Individual or Set | Individual |
| Range | 5 - 6 In |
| Finish | Enamel |
| Spindle Lock | Y |
