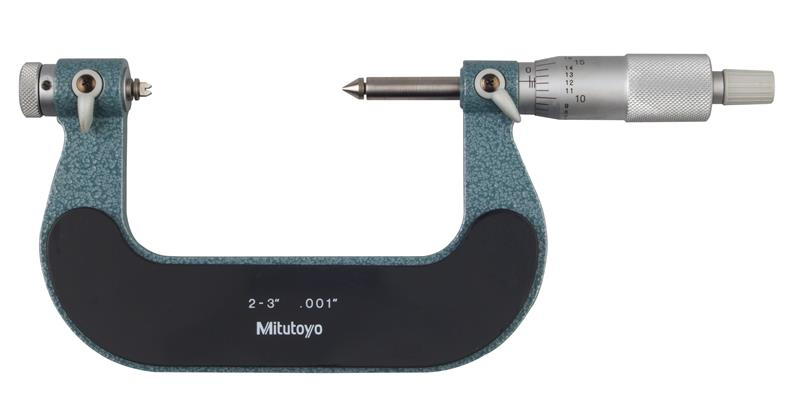

2-3 Inch Measuring Range, Ratchet Thimble, High Speed Steel Face, Interchangeable Anvil Thread Micrometer

  • Item Code: 126-903
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Comes with Anvil-Spindle tip set with 60 degree threads.
    • Suppled in a fitted plastic case.
    • Has a Ratchet Stop for constant measuring force.

Tech Specs

Back To Top
Primary (Outside Diameter) Contact Point Material Hardened Steel
Brand Mitutoyo
Mechanical or Digital Mechanical
Resolution or Graduation .001 In
Individual or Set Set
Range 2 - 3 In
Spindle Lock Y
Case Part Number 453217
Accuracy ±.0002 In
Primary Measuring Range Lower - Inch 2 In
Spindle Face Variable
Finish Enamel
Primary Measuring Range Upper - Inch 3 In
Thimble Diameter Measurement 18mm
Pieces Per Set 7
Case Material Plastic Case
Clutch Ratchet Stop
