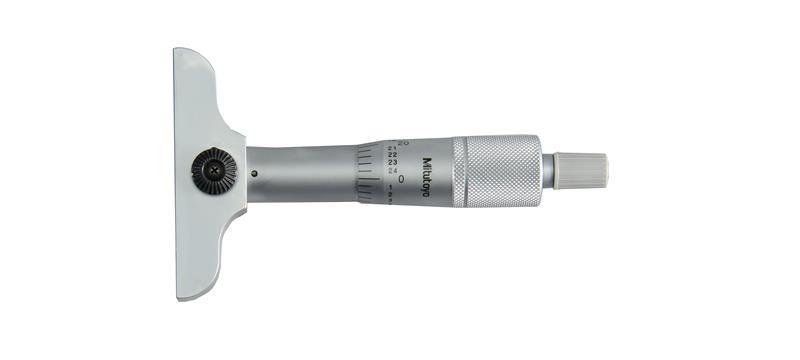

0-1 In.001 Inch, Mechanical Depth Micrometer, Rod Clamp, 2.5 Inch Base, Ratchet Stop

  • Item Code: 128-105
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Has a 4mm diam. measuring rod
    • Comes with a measuring rod clamp
    • With Ratchet Stop for constant measuring force.

Tech Specs

Back To Top
Accuracy ±4µm
Case Part Number 475132
Case Material Plastic Case
Primary Measuring Range Upper - Inch 1 In
Individual or Set Individual
Resolution or Graduation .001 In
Spindle Lock N
Range 0 - 1 In
Primary (Outside Diameter) Contact Point Material Carbon steel
Thimble Diameter Measurement 18.3mm
Brand Mitutoyo
Clutch Ratchet Stop
Mechanical or Digital Mechanical
Primary Measuring Range Lower - Inch 0 In
