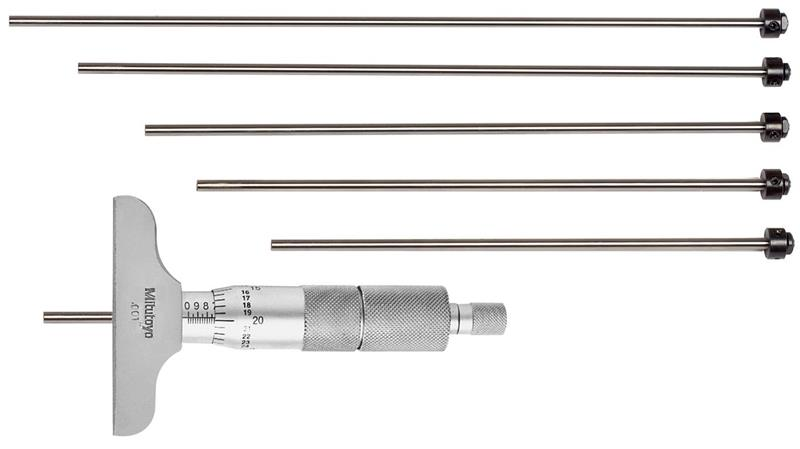

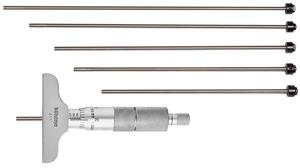

0-6 Inch Measuring Range, Ratchet Thimble, 2.5 Inch Base, Mechanical Depth Micrometer

  • Item Code: 129-128
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Interchangeable rods provide a wide mesuring range.
    • With ratchet stop for constant force.
    • The rod length can be adjusted in 1 In or 25mm increments.

Tech Specs

Back To Top
Length Measurement 2.5 In (Base)
Primary Measuring Range Lower - Inch 0 In
Brand Mitutoyo
Contact Point Flatness .00001 in
Primary (Outside Diameter) Contact Point Material Carbon steel
Primary Measuring Range Upper - Inch 6 In
Thimble Diameter Measurement 18.3mm
Accuracy ±.00012 In
Individual or Set Individual
Spindle Lock N
Base Flatness .00005 In
Case Material Plastic Case
Range 0 - 6 In
Case Part Number 04MZA090
Width .63 In (Base)
Mechanical or Digital Mechanical
Parallelism [.00016 + (.00004 x R/2] In
Resolution or Graduation .0005 In
Contact Point Diameter .157 In
