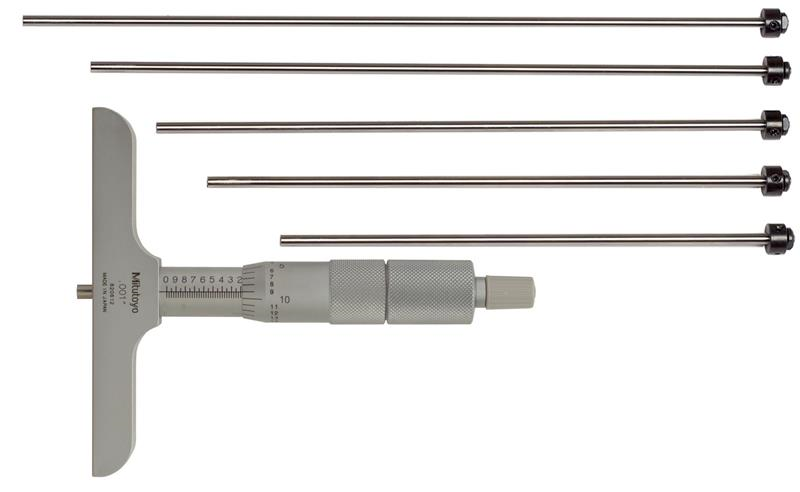

0-6 Inch Measuring Range, Ratchet Thimble, 4 Inch Base, Mechanical Depth Micrometer

  • Item Code: 129-132
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Interchangeable rods provide a wide mesuring range.
    • With ratchet stop for constant force.
    • The rod length can be adjusted in 1 In or 25mm increments.

Tech Specs

Back To Top
Accuracy ±.00012 In
Individual or Set Individual
Range 0 - 6 In
Spindle Lock N
Parallelism [.00016 + (.00004 x R/2] In
Thimble Diameter Measurement 18.3mm
Case Material Plastic Case
Base Flatness .00008 In
Brand Mitutoyo
Contact Point Flatness .00001 in
Primary (Outside Diameter) Contact Point Material Carbon steel
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 6 In
Contact Point Diameter .157 In
Mechanical or Digital Mechanical
Resolution or Graduation .0005 In
Length Measurement 4 In (Base)
Width .63 In (Base)
Case Part Number 04MZA090
