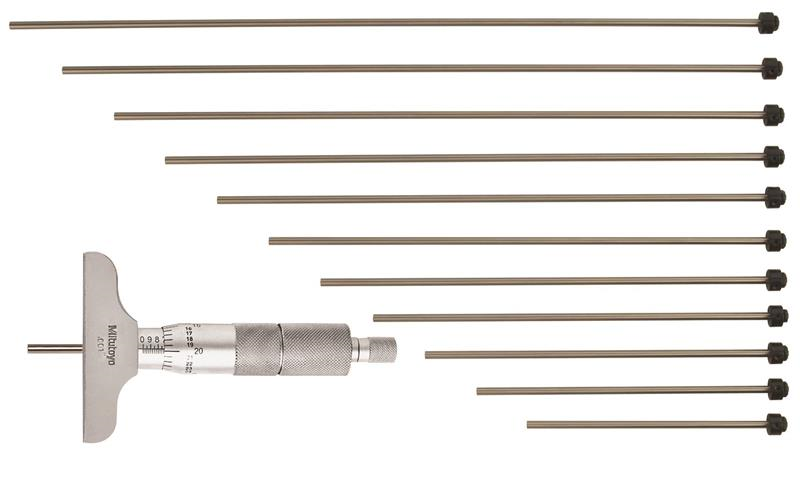

0-12 Inch Measuring Range, Ratchet Thimble, 2.5 Inch Base, Mechanical Depth Micrometer

  • Item Code: 129-149
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Interchangeable rods provide a wide mesuring range.
    • With ratchet stop for constant force.
    • The rod length can be adjusted in 1 In or 25mm increments.

Tech Specs

Back To Top
Case Part Number 04MZA090
Contact Point Diameter .157 In
Contact Point Flatness .00001 in
Primary (Outside Diameter) Contact Point Material Carbon steel
Thimble Diameter Measurement 18.3mm
Accuracy ±.00012 In
Individual or Set Individual
Parallelism [.00016 + (.00004 x R/2] In
Spindle Lock N
Base Flatness .00008 In
Brand Mitutoyo
Mechanical or Digital Mechanical
Width .63 In (Base)
Case Material Plastic Case
Length Measurement 2.5 In (Base)
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 12 In
Range 0 - 12 In
Resolution or Graduation .0005 In
