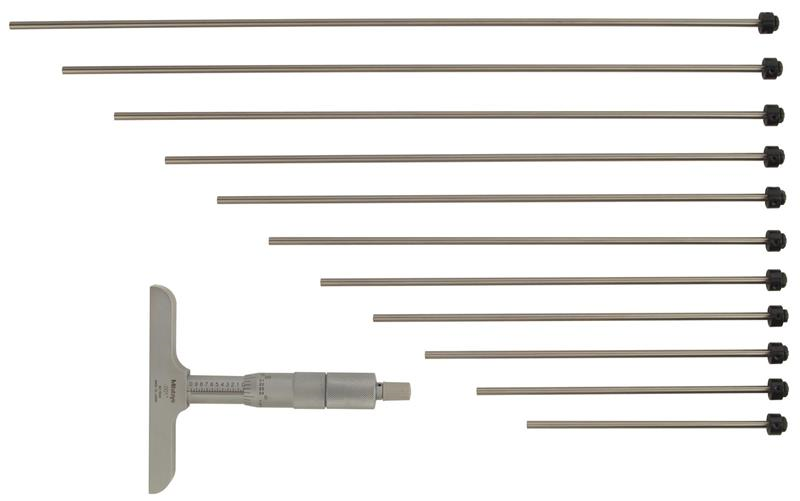

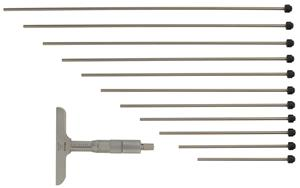

0-12 Inch Measuring Range, Ratchet Thimble, 4 Inch Base, Mechanical Depth Micrometer

  • Item Code: 129-150
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Interchangeable rods provide a wide mesuring range.
    • With ratchet stop for constant force.
    • The rod length can be adjusted in 1 In or 25mm increments.

Tech Specs

Back To Top
Case Part Number 470131
Parallelism [.00016 + (.00004 x R/2] In
Width .63 In (Base)
Accuracy ±.00012 In
Individual or Set Individual
Length Measurement 4 In (Base)
Resolution or Graduation .0005 In
Base Flatness .00008 In
Brand Mitutoyo
Contact Point Diameter .157 In
Contact Point Flatness .00001 in
Mechanical or Digital Mechanical
Case Material Plastic Case
Primary Measuring Range Upper - Inch 12 In
Range 0 - 12 In
Thimble Diameter Measurement 18.3mm
Primary (Outside Diameter) Contact Point Material Carbon steel
Spindle Lock N
Primary Measuring Range Lower - Inch 0 In
