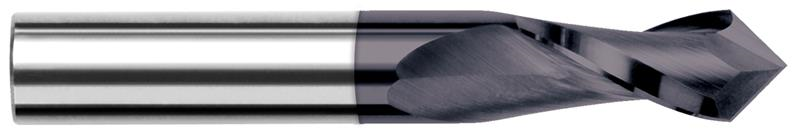

0.1250 in. (1/8) Cutter Diameter x 0.5000 in. (1/2) Length of Cut x 120 Deg. Included Drill Style 2 Flute AlTiN Coated Carbide Drill/End Mill

  • Item Code: 12908-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Drilling and Milling Applications
    • 2 Flutes
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Point Angle 120
Web Thickness 0.0050"
Brand Harvey Tool
Included Angle 120
Length of Cut Multiple (4x)
Material Solid Carbide
Number of Flutes 2
Coating AlTiN
Decimal Diameter 0.1250"
Fractional Diameter 1/8"
Length of Cut 0.5000" (1/2)
Shank Diameter 0.1250" (1/8)
Overall Length 1.5000" (1-1/2)
