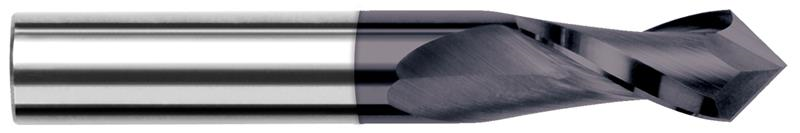

0.1875 in. (3/16) Cutter Diameter x 0.6250 in. (5/8) Length of Cut x 120 Deg. Included Drill Style 2 Flute AlTiN Coated Carbide Drill/End Mill

  • Item Code: 12912-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Drilling and Milling Applications
    • 2 Flutes
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Web Thickness 0.0060"
Point Angle 120
Brand Harvey Tool
Included Angle 120
Material Solid Carbide
Number of Flutes 2
Overall Length 2.0000" (2)
Length of Cut 0.6250" (5/8)
Shank Diameter 0.1875" (3/16)
Coating AlTiN
Decimal Diameter 0.1875"
Length of Cut Multiple (3x)
Fractional Diameter 3/16"
