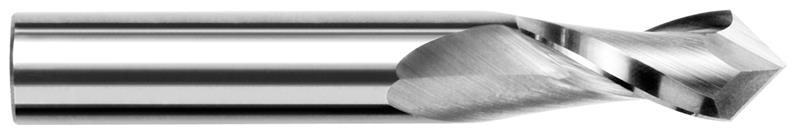

0.2500 in. (1/4) Cutter Diameter x 0.7500 in. (3/4) Length of Cut x 120 Deg. Included Drill Style 2 Flute Carbide Drill/End Mill

  • Item Code: 12916-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Drilling and Milling Applications
    • 2 Flutes
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Overall Length 2.5000" (2-1/2)
Coating None
Decimal Diameter 0.2500"
Length of Cut Multiple (3x)
Material Solid Carbide
Length of Cut 0.7500" (3/4)
Number of Flutes 2
Shank Diameter 0.2500" (1/4)
Brand Harvey Tool
Included Angle 120
Fractional Diameter 1/4"
Point Angle 120
Web Thickness 0.0060"
