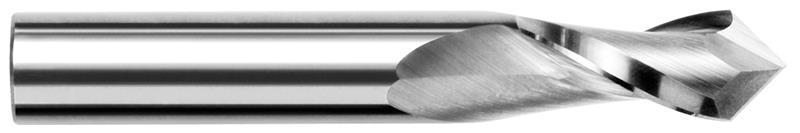

0.5000 in. (1/2) Cutter Diameter x 1.0000 in. (1) Length of Cut x 120 Deg. Included Drill Style 2 Flute Carbide Drill/End Mill

  • Item Code: 12932
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Drilling and Milling Applications
    • 2 Flutes
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Included Angle 120
Length of Cut Multiple (2x)
Material Solid Carbide
Number of Flutes 2
Coating None
Decimal Diameter 0.5000"
Overall Length 3.0000" (3)
Point Angle 120
Shank Diameter 0.5000" (1/2)
Web Thickness 0.0080"
Fractional Diameter 1/2"
Length of Cut 1.0000" (1)
