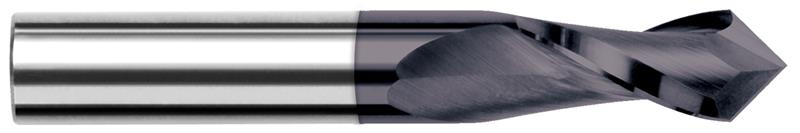

0.6250 in. (5/8) Cutter Diameter x 1.2500 in. (1-1/4) Length of Cut x 120 Deg. Included Drill Style 2 Flute AlTiN Coated Carbide Drill/End Mill

  • Item Code: 12940-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Drilling and Milling Applications
    • 2 Flutes
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 2
Brand Harvey Tool
Length of Cut Multiple (2x)
Material Solid Carbide
Coating AlTiN
Decimal Diameter 0.6250"
Web Thickness 0.0100"
Shank Diameter 0.6250" (5/8)
Included Angle 120
Length of Cut 1.2500" (1-1/4)
Fractional Diameter 5/8"
Overall Length 3.5000" (3-1/2)
Point Angle 120
