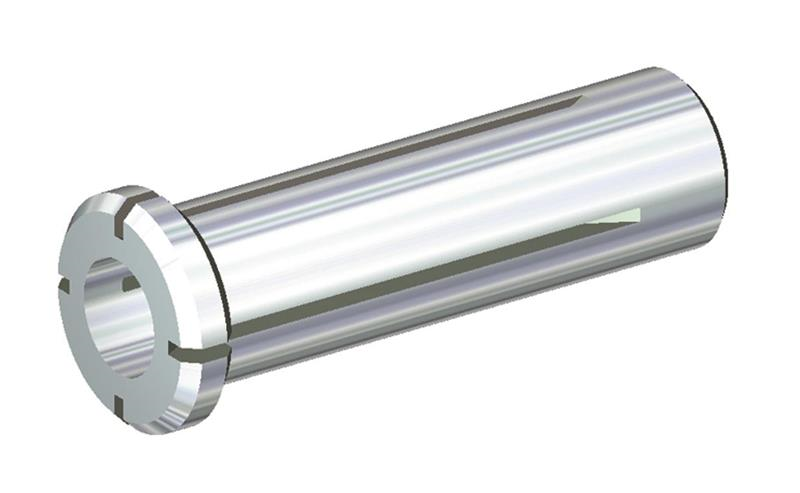

1-1/2 in. x 7/8 in. Taper Shank Hydraulic Chuck Sleeve Chuck Sleeve
- Item Code: 12HC0875
- Brand: WIDIA-Erickson
- Unit Size: 1
| Adapt/Shank/Bore Diameter WKPS (In) |
0.8750 |
| Adapt/Shank/Bore Diameter WKPS (mm) |
22.225 |
| Adapt/Shank/Bore Diameter WKPS F |
7/8 |
| Body Diameter Max (Inch) |
1.2500 |
| Catalog Sleeve Series |
HC1250 |
| Clamping Diameter Max (Inch) |
0.8750 |
| Clamping Diameter Max (mm) |
22.225 |
| Overall Length (Inch) |
2.2830 |
| Shank Length (Metric) |
60.000 |
| Sleeve Capacity Max (Inch) |
0.8750 |
| Sleeve Capacity Max (mm) |
22.225 |
| Sleeve Capacity Minimum (Inch) |
0.8745 |
| Sleeve Capacity Minimum (mm) |
22.212 |
| Adapter/Shank/Bore Diameter (Fractional) |
1 1/4 |
| Body Diameter 1 Workpce Side (In) |
1.4173 |
| Brand |
WIDIA-Erickson |
| Adapter/Shank/Bore Diameter (Inch) |
1.2500 |
| Body Diameter Max (Metric) |
31.750 |
| Coolant Supply |
Yes |
| Adapter Style Machine Side-EPP |
ZYL-01 Straight Shank |
| Adapter Type Machine Side-EPP |
ZYL - Cylindrical Adapter |
| Body Diameter 1 Workpce Side (mm) |
36.000 |
| Overall Length (Metric) |
57.988 |
| Adapter/Shank/Bore Diameter (mm) |
31.750 |
| Gage Length 1 (Inch) |
0.1575 |
| Gage Length 1 (Metric) |
4.000 |
| Adapter Size Machine Side-EPP |
1250 |
| Units of Tool (Extract) |
IN - Inch |
| Shank Length (Inch) |
2.3622 |
