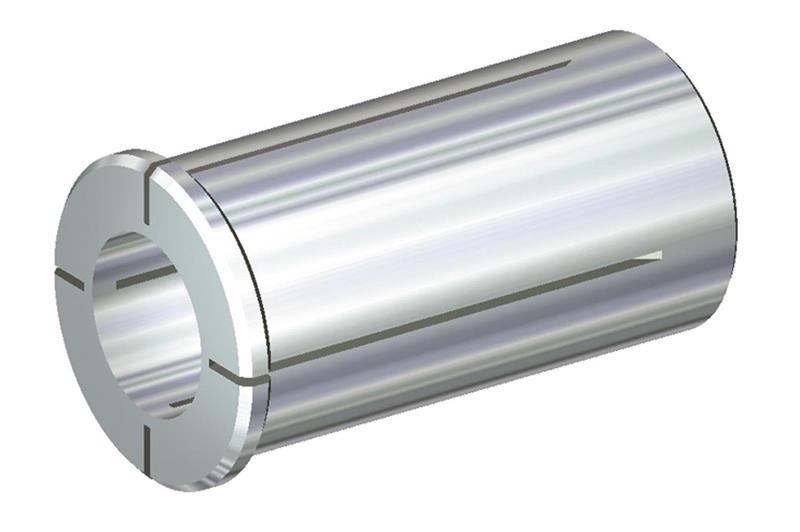

8mm I.D. x 12mm O.D. x 40mm Under Head Length Sealed Hydraulic Chuck Sleeve
- Item Code: 12MHC080M
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
One-piece design with slot configuration to seal coolant.
Cutting tool must be cylindrical and have a through hole when using coolant.
Sleeve must be inserted completely into the hydraulic chuck until shoulder mates against the hydraulic chuck front face.
Cutting tools must be in full contact with the sleeve bore length
Tech Specs
Back To Top| Adapt/Shank/Bore Diameter WKPS F | 0.3150 |
|---|---|
| Adapter Size Machine Side-EPP | 0120 |
| Adapter/Shank/Bore Diameter (Fractional) | 0.4724 |
| Adapter/Shank/Bore Diameter (Inch) | 0.4724 |
| Adapter/Shank/Bore Diameter (mm) | 12.000 |
| Body Diameter 1 Workpce Side (In) | 0.6299 |
| Body Diameter 1 Workpce Side (mm) | 16.000 |
| Catalog Sleeve Series | HC12M |
| MachSide IntClear Diameter 1 (Inch) | 0.3228 |
| MachSide IntClear Diameter 1 (mm) | 8.200 |
| Overall Length (Metric) | 44.000 |
| Shank Length (Metric) | 40.000 |
| Sleeve Capacity Max (mm) | 8.000 |
| Sleeve Capacity Minimum (mm) | 7.991 |
| Coolant Supply | Yes |
| Units of Tool (Extract) | MM - Metric |
| Gage Length 1 (Inch) | 0.1575 |
| Sleeve Capacity Minimum (Inch) | 0.3146 |
| Gage Length 1 (Metric) | 4.000 |
| Adapter Style Machine Side-EPP | ZYL-01 Straight Shank |
| Shank Length (Inch) | 1.5748 |
| Adapt/Shank/Bore Diameter WKPS (In) | 0.3150 |
| Adapt/Shank/Bore Diameter WKPS (mm) | 8.000 |
| Brand | WIDIA-Erickson |
| Sleeve Capacity Max (Inch) | 0.3150 |
| Adapter Type Machine Side-EPP | ZYL - Cylindrical Adapter |
| Overall Length (Inch) | 1.7323 |
