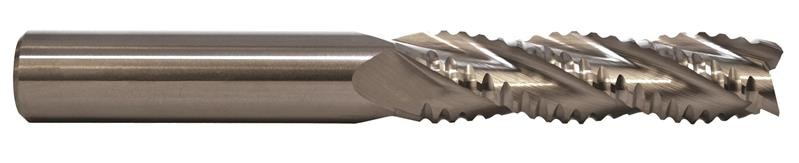

1/4 Inch Diameter, 1/4 Inch Shank Diameter, 1-1/4 Inch Length of Cut, 4-Flute, Solid Carbide Extra Length Chipbreaker, Center Cutting End Mill
- Item Code: 13225000
- Brand: MA Ford
- Unit Size: 1
Description
Tuff Cut® GP - Series 132
Chipbreaker - Center Cutting
Chipbreakers are designed to minimize cutting forces, reduce or eliminate chatter and prolong tool life.
Features
Back To Top- Designed for deep pocket milling and other applications where standard flute lengths are too short.
- Chipbreaker geometry permits extremely high feed rates in roughing operations. Tools designed with tooth overlap to produce fairly smooth part finish.
Tech Specs
Back To Top| Brand | MA Ford |
|---|---|
| Fractional Diameter | 1/4" |
| Length of Cut | 1-1/4 Inch |
| Material | Solid Carbide |
| Overall Length | 3 Inch |
| Helix | 30° |
| Type | End Mill |
| Shank Diameter | 1/4 Inch |
| Decimal Diameter | 0.2500" |
| Series | Tuff Cut® GP |
| Number of Flutes | 4 |
