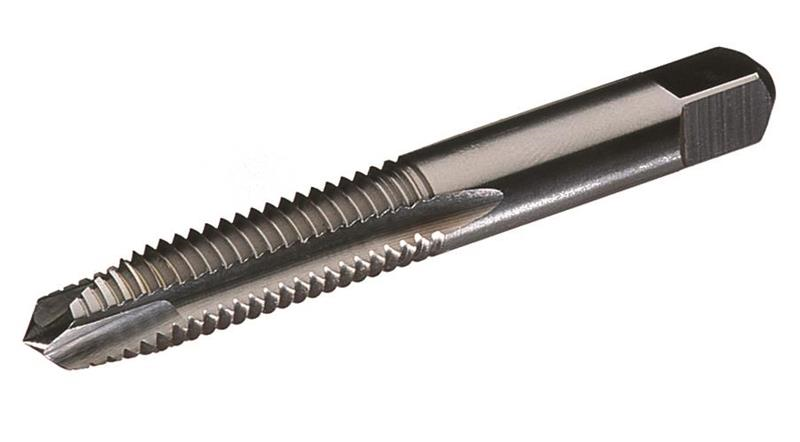

1/4-20 UNC, High Speed Steel, H11 Plug, 2-Flute, Gun Tap
- Item Code: 13275
- Brand: WIDIA
- Unit Size: 1
Description
Series 5301
GUN Taps for Through Holes in General Machining Applications
Features
Back To Top- Production Taps
- Spiral Point
- Plug Chamfer
Tech Specs
Back To Top| Unit of Measure | Inch |
|---|---|
| Square Size | 0.1910 Inch |
| Shank Diameter | 0.2550 Inch |
| Thread Length | 1 Inch |
| Number of Flutes | 2 |
| Coating | Uncoated |
| Brand | WIDIA |
| Material | HSS |
| Shank Style | Square |
| Diameter | 1/4 - 20 |
| Product Name | Tap |
| Chamfer | Plug |
| Overall Length | 2-1/2 Inch |
| Thread Limit | H11 |
| Thread Type | NC/UNC/UNJC |
| Threads Per Inch | 20 |
