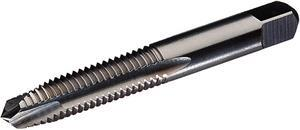

M1.6 x 0.35 HSS Uncoated D3 2 Flute Gun Tap

  • Item Code: 13365-WIDIA
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Thread Size M1.6 X 0.35
Thread Diameter (mm) 1.60 mm
Thread Diameter (in.) 0.0630"
Chamfer Plug
Material HSS
Type Spiral Point Tap
Coolant Through No
Thread Type Metric
Brand WIDIA
Cutting Direction Right
Overall Length Inches 1.6300"
Adapter/Shank/Bore Dia (mm) 3.58 mm
Number of Flutes 2
Thread Length (in.) 0.3130"
Adapter/Shank/Bore Dia (in.) 0.1410"
Overall Length Metric 41.402 mm
Thread Length (mm) 7.95 mm
Thread Limit D3
Coating/Finish Uncoated
Series GUN
