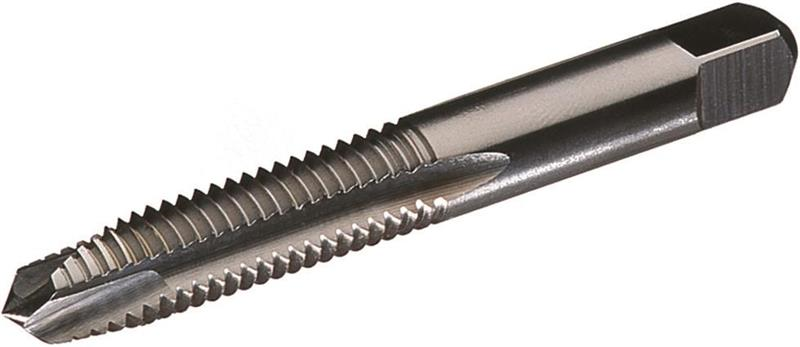

M6.3 x 1 HSS Uncoated D5 2-Flute Gun Tap
- Item Code: 13382
- Brand: WIDIA
- Unit Size: 1
Description
Series 5351/2351
Spiral Point, Plug Chamfer
Through Holes in General Machining Applications
Tech Specs
Back To Top| Diameter | M6.3 X 1 |
|---|---|
| Product Name | Tap |
| Shank Diameter | 6.477 MM |
| Shank Style | Square |
| Brand | WIDIA |
| Number of Flutes | 2 |
| Overall Length | 63.50 MM |
| Thread Limit | D5 |
| Thread Type | METRIC |
| Coolant Through (Yes/No) | No |
| Unit of Measure | Metric |
| Pitch | 1.00 MM |
| Chamfer | Plug |
| Coating | Uncoated |
| Hand of Tool | Right Hand |
| Square Size | 4.85 MM |
| Thread Length | 25.40 MM |
