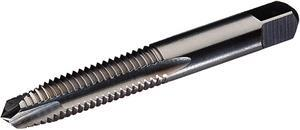

M12 x 1.75 HSS Uncoated D6 3 Flute Gun Tap
- Item Code: 13393
- Brand: WIDIA
- Unit Size: 1
| Thread Length (mm) |
42.06 mm |
| Thread Length (in.) |
1.6560" |
| Thread Limit |
D6 |
| Chamfer |
Plug |
| Material |
HSS |
| Overall Length Metric |
85.852 mm |
| Thread Size |
M12 X 1.75 |
| Thread Type |
Metric |
| Adapter/Shank/Bore Dia (mm) |
9.32 mm |
| Series |
GUN |
| Adapter/Shank/Bore Dia (in.) |
0.3670" |
| Coolant Through |
No |
| Overall Length Inches |
3.3800" |
| Type |
Spiral Point Tap |
| Coating/Finish |
Uncoated |
| Thread Diameter (mm) |
12.00 mm |
| Cutting Direction |
Right |
| Number of Flutes |
3 |
| Thread Diameter (in.) |
0.4724" |
| Brand |
WIDIA |
