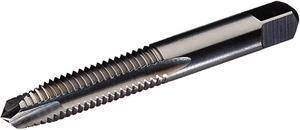

M14 x 2 HSS Uncoated D6 3 Flute Gun Tap
- Item Code: 13397
- Brand: WIDIA
- Unit Size: 1
| Overall Length Metric |
91.186 mm |
| Thread Size |
M14 X 2 |
| Thread Diameter (mm) |
14.00 mm |
| Thread Diameter (in.) |
0.5512" |
| Adapter/Shank/Bore Dia (mm) |
10.90 mm |
| Brand |
WIDIA |
| Cutting Direction |
Right |
| Number of Flutes |
3 |
| Thread Limit |
D7 |
| Thread Type |
Metric |
| Type |
Spiral Point Tap |
| Material |
HSS |
| Thread Length (in.) |
1.6560" |
| Thread Length (mm) |
42.06 mm |
| Series |
GUN |
| Coating/Finish |
Uncoated |
| Overall Length Inches |
3.5900" |
| Coolant Through |
No |
| Adapter/Shank/Bore Dia (in.) |
0.4290" |
| Chamfer |
Plug |
