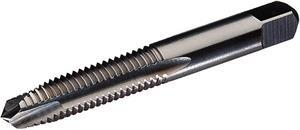

M20 x 2.50 HSS Uncoated D7 3 Flute Gun Tap
- Item Code: 13409
- Brand: WIDIA
- Unit Size: 1
| Thread Length (in.) |
2.0000" |
| Overall Length Metric |
113.538 mm |
| Coating/Finish |
Uncoated |
| Thread Length (mm) |
50.80 mm |
| Thread Diameter (in.) |
0.7874" |
| Brand |
WIDIA |
| Cutting Direction |
Right |
| Number of Flutes |
3 |
| Overall Length Inches |
4.4700" |
| Thread Limit |
D7 |
| Thread Size |
M20 X 2.5 |
| Adapter/Shank/Bore Dia (mm) |
16.56 mm |
| Series |
GUN |
| Adapter/Shank/Bore Dia (in.) |
0.6520" |
| Material |
HSS |
| Thread Type |
Metric |
| Coolant Through |
No |
| Thread Diameter (mm) |
20.00 mm |
| Chamfer |
Plug |
| Type |
Spiral Point Tap |
