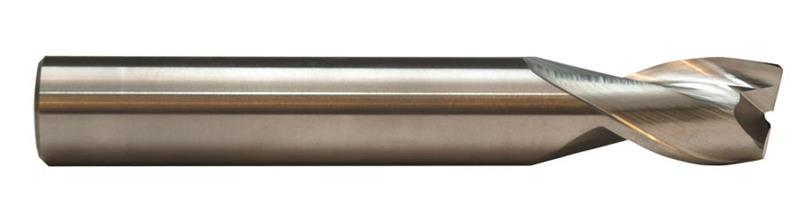

3/4 Inch Diam, 0.03 Inch Radius, 1 Inch Length of Cut, 2-Flute, Solid Carbide, TuffCut® AL Corner Radius End Mill
- Item Code: 13575000
- Brand: MA Ford
- Unit Size: 1
Description
Tuff Cut® AL - Series 135
The geometry of M.A. Ford® 135 Series solid carbide end mill allows it to be run at extremely high chip loads surpassing the current market leaders.
Features
Back To Top- Extremely high chip loads - .040€/1mm per tooth and above.
- Performs equally well across a broad range of operating speeds.
- Designed for High Speed Machining of Aluminum and non-ferrous metals.
Tech Specs
Back To Top| Decimal Cutting Diameter | 0.7500" |
|---|---|
| Helix | 30° |
| Shank Diameter | 3/4 Inch |
| Type | End Mill |
| Material | Solid Carbide |
| Number of Flutes | 2 |
| Fractional Cutting Diameter | 3/4" |
| Radius Decimal | 0.0300" |
| Length of Cut | 1 Inch |
| Brand | MA Ford |
| Overall Length | 4 Inch |
| Series | Tuff Cut® AL |
