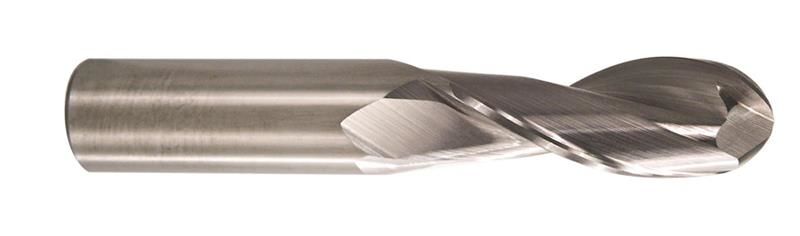

1/8 Inch Diameter, 1/2 Inch Length of Cut, 2-Flute, Solid Carbide, Center Cutting TuffCut® AL Ball Nose End Mill
- Item Code: 135B12501
- Brand: MA Ford
- Unit Size: 1
Description
Tuff Cut® AL - Series 135B
The geometry of M.A. Ford® 135 Series solid carbide end mill allows it to be run at extremely high chip loads surpassing the current market leaders.
Features
Back To Top- Performs equally well across a broad range of operating speeds.
- Designed for High Speed Machining of Aluminum and non-ferrous metals.
Tech Specs
Back To Top| Brand | MA Ford |
|---|---|
| Series | Tuff Cut® AL |
| Helix Angle | 37° |
| Material | Solid Carbide |
| Number of Flutes | 2 |
| Overall Length | 2 Inch |
| Fractional Diameter | 1/8" |
| Type | End Mill |
| Shank Diameter | 1/8 Inch |
| Length of Cut | 1/2 Inch |
| Decimal Diameter | 0.1250" |
