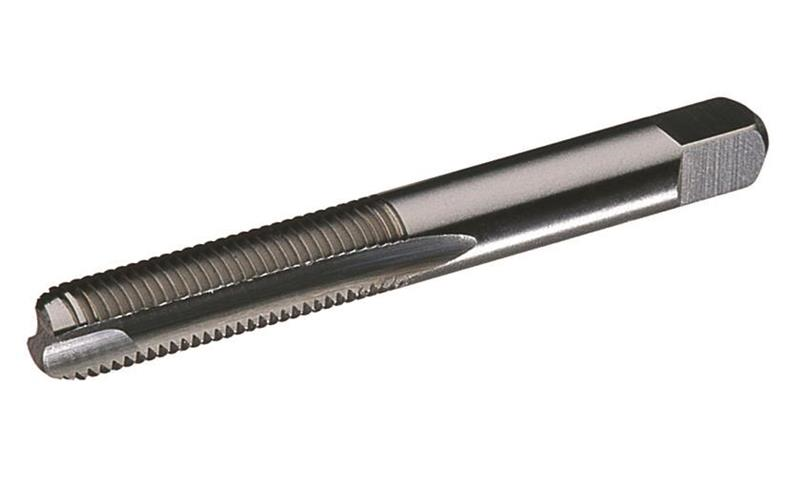

2-56 UNC, High Speed Steel, H2 Bottoming, 2-Flute, Gun Tap
- Item Code: 13606
- Brand: WIDIA
- Unit Size: 1
Description
Series 5301
GUN Taps for Through Holes in General Machining Applications
Features
Back To Top- Production Taps
- Spiral Point
- Plug Chamfer
Tech Specs
Back To Top| Coating | Uncoated |
|---|---|
| Thread Type | NC/UNC/UNJC |
| Number of Flutes | 2 |
| Product Name | Tap |
| Thread Length | 0.4375 Inch |
| Threads Per Inch | 56 |
| Material | HSS |
| Square Size | 0.1100 Inch |
| Thread Limit | H2 |
| Brand | WIDIA |
| Shank Style | Square |
| Unit of Measure | Inch |
| Chamfer | Bottoming |
| Shank Diameter | 0.1410 Inch |
| Diameter | #2 - 56 |
| Overall Length | 1-3/4 Inch |
