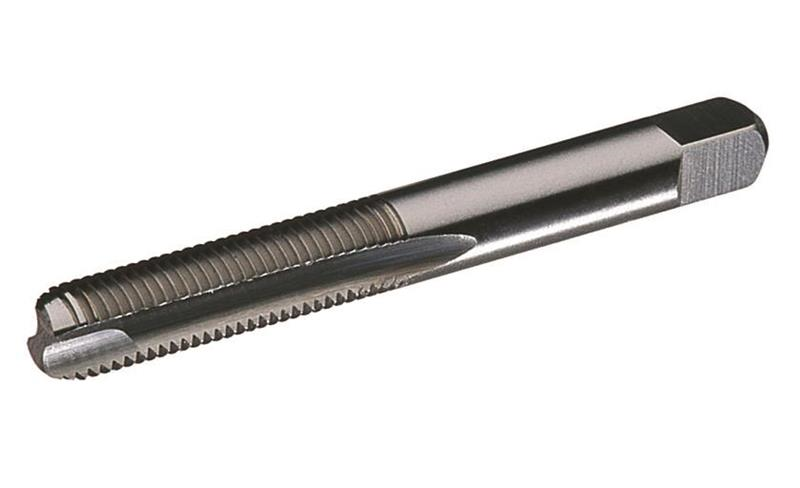

10-32 UNF, High Speed Steel, H3 Plug, 2-Flute, Gun Tap
- Item Code: 13634
- Brand: WIDIA
- Unit Size: 1
Description
Series 5301
GUN Taps for Through Holes in General Machining Applications
Features
Back To Top- Production Taps
- Spiral Point
- Plug Chamfer
Tech Specs
Back To Top| Thread Length | 0.8750 Inch |
|---|---|
| Threads Per Inch | 32 |
| Diameter | #10 - 32 |
| Material | HSS |
| Thread Limit | H3 |
| Product Name | Tap |
| Thread Type | NF/UNF/UNJF |
| Chamfer | Bottoming |
| Overall Length | 2-3/8 Inch |
| Shank Diameter | 0.1940 Inch |
| Brand | WIDIA |
| Coating | Uncoated |
| Number of Flutes | 2 |
| Unit of Measure | Inch |
| Shank Style | Square |
| Square Size | 0.1520 Inch |
