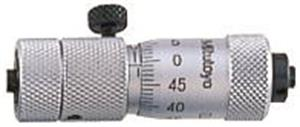

50-63mm, 0.01mm, Mechanical Extention Rod Type Inside Micrometer

  • Item Code: 137-011
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Micrometer head only
    • Wide range of ID measurements by combining extension rods and anvils with the micrometer head.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Primary Measuring Range Upper - Metric 63mm
Range 50 - 63mm
Primary (Outside Diameter) Contact Point Material Carbide Avail.
Thimble Diameter Measurement 15mm
Micrometer Head Travel .5 In
Measuring Method 2-point
Primary Measuring Range Lower - Metric 50mm
Resolution or Graduation 0.01mm
Brand Mitutoyo
Mechanical or Digital Mechanical
Accuracy ±{.00012+n+(.00004xR/2)}
Case Material Plastic Case
Individual or Set Set
