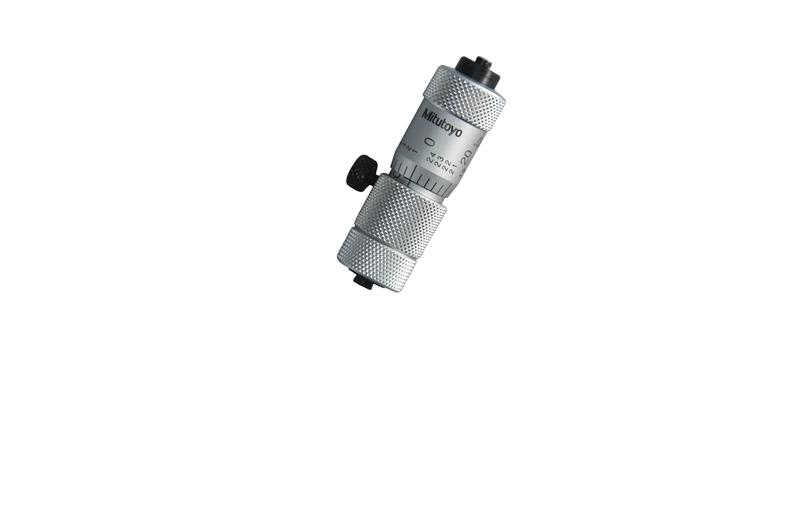

2 Inch - 2.5 Inch, 0.001 Inch, Mechanical Extention Rod Type Inside Micrometer

  • Item Code: 137-012
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Micrometer head only
    • Wide range of ID measurements by combining extension rods and anvils with the micrometer head.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Individual or Set Set
Brand Mitutoyo
Measuring Method 2-point
Range 2 - 2.5 In
Mechanical or Digital Mechanical
Thimble Diameter Measurement 15mm
Accuracy ±{.00012+n+(.00004xR/2)}
Primary Measuring Range Lower - Inch 2 In
Primary Measuring Range Upper - Inch 2.5 In
Resolution or Graduation .001 In
Micrometer Head Travel .5 In
Case Material Plastic Case
Primary (Outside Diameter) Contact Point Material Carbide Avail.
