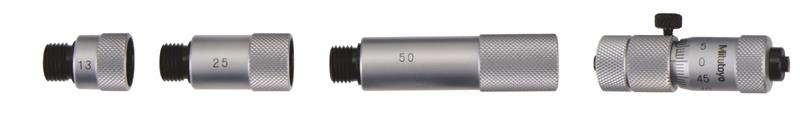

50-150mm, 0.01mm, Mechanical Extention Rod Type Inside Micrometer, Extention Rods (13mm, 25mm, 50mm)

  • Item Code: 137-201
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Comes with extension rods
    • Wide range of ID measurements by combining extension rods and anvils with the micrometer head.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Measuring Method 2-point
Pieces Per Set 3 rods
Primary (Outside Diameter) Contact Point Material Carbide Avail.
Primary Measuring Range Upper - Metric 150mm
Range 50 - 150mm
Resolution or Graduation 0.01mm
Accuracy ±{.00012+n+(.00004xR/2)}
Primary Measuring Range Lower - Metric 50mm
Mechanical or Digital Mechanical
Thimble Diameter Measurement 15mm
Brand Mitutoyo
Micrometer Head Travel .5 In
Case Material Plastic Case
Individual or Set Set
