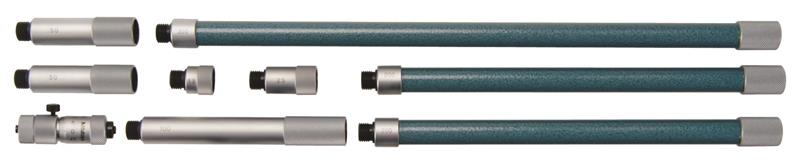

50-1000mm, 0.01mm, Mechanical Extention Rod Type Inside Micrometer, Extention Rods (13mm, 25mm, 50mm(2), 100mm, 200mm(2), 300mm)

  • Item Code: 137-204
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Comes with extension rods
    • Wide range of ID measurements by combining extension rods and anvils with the micrometer head.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Range 50 - 1000mm
Accuracy ±{.00012+n+(.00004xR/2)}
Mechanical or Digital Mechanical
Micrometer Head Travel .5 In
Brand Mitutoyo
Primary Measuring Range Upper - Metric 1000mm
Individual or Set Set
Case Material Plastic Case
Measuring Method 2-point
Pieces Per Set 8 rods
Primary (Outside Diameter) Contact Point Material Carbide Avail.
Primary Measuring Range Lower - Metric 50mm
Resolution or Graduation 0.01mm
Thimble Diameter Measurement 15mm
