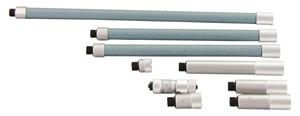

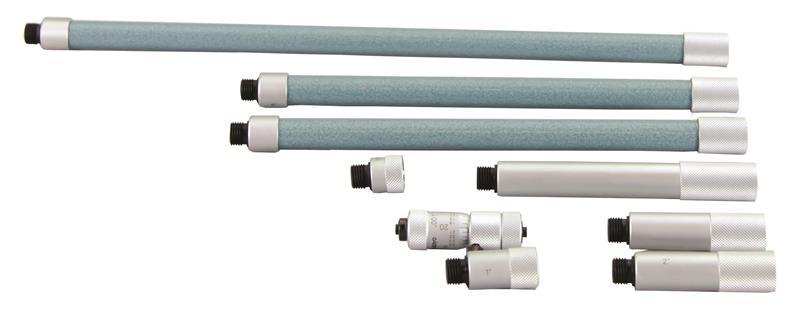

2 Inch - 40 Inch, 0.001 Inch, Mechanical Extention Rod Type Inside Micrometer, Extention Rods (.5 Inch, 1 Inch, 2 Inch(2), 4 Inch,8 Inch(2), 12 Inch)

  • Item Code: 137-214
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Comes with extension rods
    • Wide range of ID measurements by combining extension rods and anvils with the micrometer head.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Range 2 - 40 In
Micrometer Head Travel .5 In
Measuring Method 2-point
Pieces Per Set 8 rods
Primary Measuring Range Lower - Inch 2 In
Primary Measuring Range Upper - Inch 40 In
Accuracy ±{.00012+n+(.00004xR/2)}
Individual or Set Set
Thimble Diameter Measurement 15mm
Brand Mitutoyo
Mechanical or Digital Mechanical
Resolution or Graduation .001 In
Case Material Plastic Case
Primary (Outside Diameter) Contact Point Material Carbide Avail.
