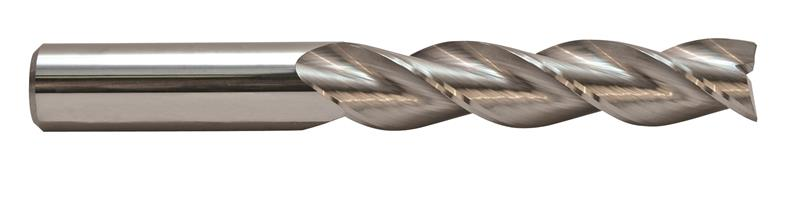

3/16 Inch Diam, 5/8 Inch Length of Cut, 3-Flute, Solid Carbide Center Cutting, Aluminum Finisher End Mill, Fordlube
- Item Code: 13818753F
- Brand: MA Ford
- Unit Size: 1
Description
Tuff Cut® X-AL - Series 138
138/138R Series Designed for Extreme High Speed Machining of Aluminum and non-ferrous metals.
Fordlube-Titanium DiBoride (TiB2) is a unique coating with low Aluminum affinity, smooth surface finish and high hardness. It is ideal for Aluminum and Magnesium alloys as it prevents build-up on cutting edge, provides superior chip flow along with extended wear resistance.
Tech Specs
Back To Top| Helix Angle | 36° |
|---|---|
| Length of Cut | 5/8 Inch |
| Type | End Mill |
| Decimal Diameter | 0.1875" |
| Number of Flutes | 3 |
| Overall Length | 2-1/2 Inch |
| Shank Diameter | 3/16 Inch |
| Material | Solid Carbide |
| Fractional Diameter | 3/16" |
| Series | Tuff Cut® X-AL |
| Brand | MA Ford |
| Coating/Finish | Fordlube |
