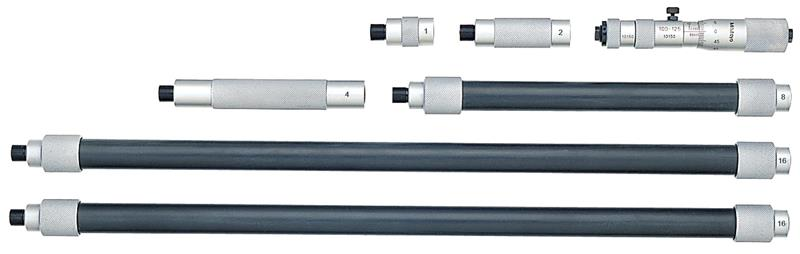

4 Inch - 52 Inch, 0.001 Inch, Mechanical Extention Rod Type Inside Micrometer, Extention Rods (1 Inch, 2 Inch, 4 Inch, 8 Inch, 16 Inch(2))

  • Item Code: 139-180
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Wide range of ID measurements by combining extension pipes and anvils with micrometer heads.
    • Supplied in a fitted wooden case.

Tech Specs

Back To Top
Pieces Per Set 6 rods
Primary Measuring Range Upper - Inch 52 In
Range 4 - 52 In
Brand Mitutoyo
Thimble Diameter Measurement 18mm
Measuring Method 2-point
Micrometer Head Travel 1 In
Resolution or Graduation .001 In
Case Material Wooden Case
Individual or Set Set
Accuracy ±{.00012+n+(.00004xR/2)}
Mechanical or Digital Mechanical
Case Part Number 04MAA166
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 4 In
