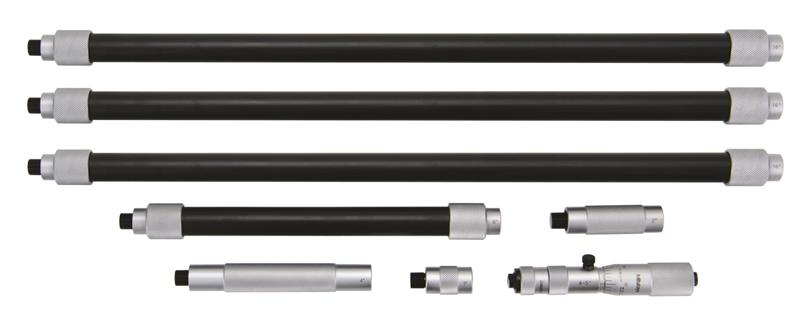

4-68 Inch, .001 Inch, Mechanical Extention Rod Type Inside Micrometer, Extention Rods (1 Inch, 2 Inch, 4 Inch, 8 Inch, 16 In(3))

  • Item Code: 139-181
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Wide range of ID measurements by combining extension pipes and anvils with micrometer heads.
    • Supplied in a fitted wooden case.

Tech Specs

Back To Top
Case Part Number 04MAA166
Micrometer Head Travel 1 In
Pieces Per Set 7 rods
Primary Measuring Range Lower - Inch 4 In
Primary Measuring Range Upper - Inch 68 In
Range 4 - 68 In
Case Material Wooden Case
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Individual or Set Set
Thimble Diameter Measurement 18mm
Measuring Method 2-point
Resolution or Graduation .001 In
Accuracy ±{.00012+n+(.00004xR/2)}
