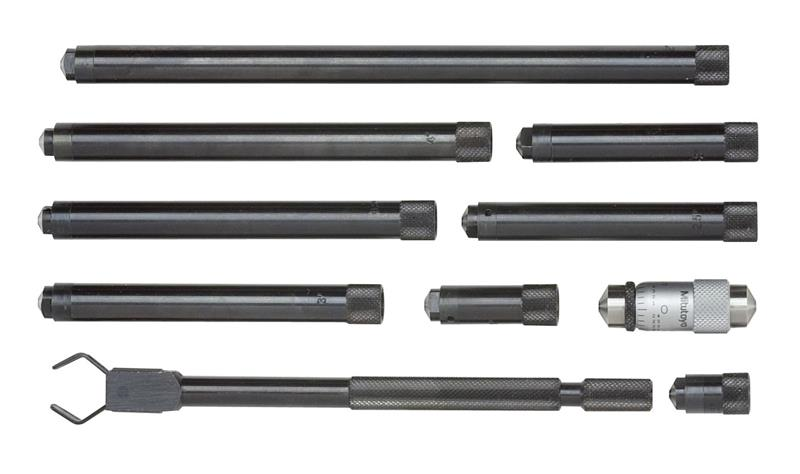

1.5-12 Inch, .001 Inch, Mechanical Extention Rod Type Inside Micrometer, Extention Rods (.5 Inch, 1 Inch, 2 Inch, 2.5 Inch, 3 Inch, 3.5 Inch, 4 Inch, 6 In)

  • Item Code: 139-201
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Wide range of ID measurements by combining extension pipes and anvils with micrometer heads.
    • Supplied in a fitted wooden case.

Tech Specs

Back To Top
Primary Measuring Range Lower - Inch 1.5
Range 1.5 - 12 In
Thimble Diameter Measurement 18mm
Individual or Set Set
Accuracy ±{.00012+n+(.00004xR/2)}
Pieces Per Set 8 rods
Micrometer Head Travel .5 In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Upper - Inch 12 In
Mechanical or Digital Mechanical
Brand Mitutoyo
Measuring Method 2-point
Resolution or Graduation .001 In
