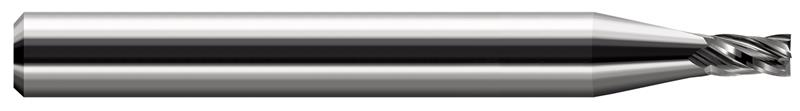

0.0750 in. (1.9 mm) Cutter Diameter x 0.1120 in. Length of Cut 2 Flute Carbide Square End Mill
- Item Code: 13975
- Brand: Harvey Tool
- Unit Size: 1
Description
Stub and Standard
Features
Back To Top- Cutter diameter down to .001"
- Center cutting
- Solid carbide
- CNC ground in the USA
Tech Specs
Back To Top| Brand | Harvey Tool |
|---|---|
| Metric Cutting Diameter | 1.90 mm |
| Decimal Cutting Diameter | 0.0750" |
| Length of Cut Multiple | (1.5x) |
| Material | Solid Carbide |
| Shank Diameter | 0.1250" (1/8) |
| Overall Length | 1.5000" (1-1/2) |
| Coating | None |
| Length of Cut | 0.1120" |
| Number of Flutes | 2 |
