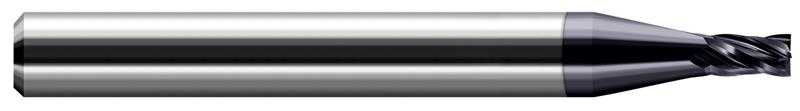

0.0780 in. (5/64) Cutter Diameter x 0.1170 in. Length of Cut 2 Flute AlTiN Coated Carbide Square End Mill
- Item Code: 13978-C3
- Brand: Harvey Tool
- Unit Size: 1
Description
Stub and Standard
Features
Back To Top- Cutter diameter down to .001"
- Center cutting
- Solid carbide
- CNC ground in the USA
Tech Specs
Back To Top| Length of Cut Multiple | (1.5x) |
|---|---|
| Material | Solid Carbide |
| Length of Cut | 0.1170" |
| Coating | AlTiN |
| Decimal Cutting Diameter | 0.0780" |
| Overall Length | 1.5000" (1-1/2) |
| Brand | Harvey Tool |
| Number of Flutes | 2 |
| Shank Diameter | 0.1250" (1/8) |
| Fractional Cutting Diameter | 5/64" |
