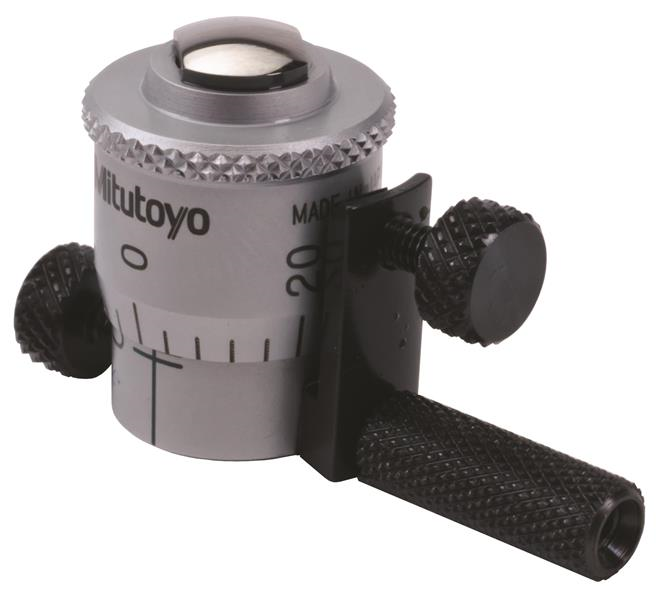

1 Inch - 1.25 Inch, 0.001 Inch, Mechanical Extention Rod Type Inside Micrometer

  • Item Code: 141-002
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Wide range of ID measurements with interchangeable rods.
    • Each interchangeable rod is marked with its measuring range.
    • The sizes of interchangeable rods can be adjusted with spacing collars.

Tech Specs

Back To Top
Range 1 - 1.25 In
Case Material Plastic Case
Measuring Method 2-point
Accuracy ±{.00024+ (.00004xR/2)}
Brand Mitutoyo
Mechanical or Digital Mechanical
Micrometer Head Travel .25 In
Primary Measuring Range Lower - Inch 1 In
Case Part Number 04MZA103
Individual or Set Individual
Primary Measuring Range Upper - Inch 1.25 In
Resolution or Graduation .001 In
Finish Satin Chrome
Primary (Outside Diameter) Contact Point Material Carbide
Thimble Diameter Measurement 16mm
