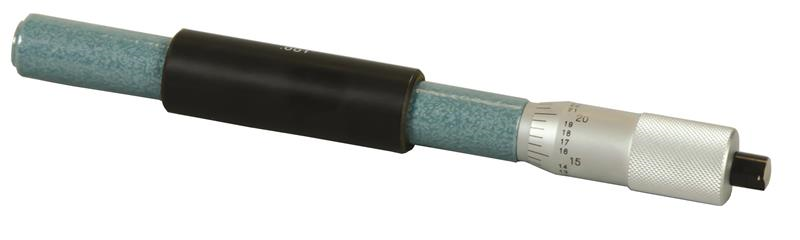

8 Inch - 9 Inch, 0.001 Inch, Mechanical Extention Rod Type Inside Micrometer

  • Item Code: 141-010
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Wide range of ID measurements with interchangeable rods.
    • Each interchangeable rod is marked with its measuring range.
    • The sizes of interchangeable rods can be adjusted with spacing collars.

Tech Specs

Back To Top
Accuracy ±{.00024+ (.00004xR/2)}
Primary Measuring Range Upper - Inch 9 In
Brand Mitutoyo
Measuring Method 2-point
Micrometer Head Travel 1 In
Range 8 - 9 In
Finish Satin Chrome
Individual or Set Individual
Resolution or Graduation .001 In
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 8 In
Thimble Diameter Measurement 16mm
Case Part Number 04MZA103
Case Material Plastic Case
