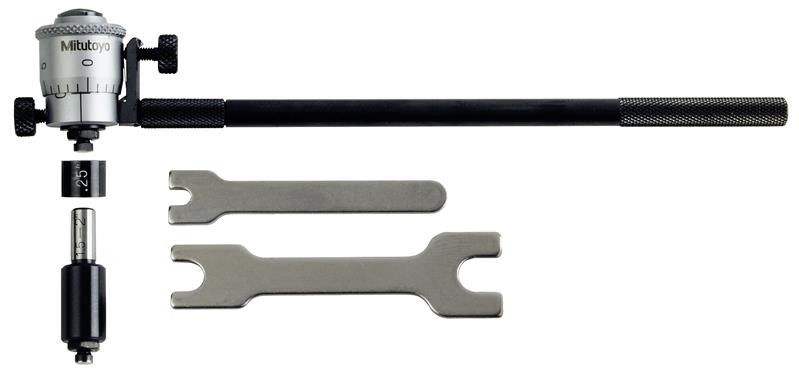

1 Inch - 2 Inch, 0.001 Inch, Mechanical Extention Rod Type Inside Micrometer, Extention Rods (2)

  • Item Code: 141-102
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Wide range of ID measurements with interchangeable rods.
    • Each interchangeable rod is marked with its measuring range.
    • The sizes of interchangeable rods can be adjusted with spacing collars.

Tech Specs

Back To Top
Micrometer Head Travel .25 In
Case Part Number 04MZA103
Individual or Set Individual
Measuring Method 2-point
Case Material Plastic Case
Brand Mitutoyo
Mechanical or Digital Mechanical
Resolution or Graduation .001 In
Accuracy ±{.00024+ (.00004xR/2)}
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 1 In
Range 1 - 2 In
Thimble Diameter Measurement 16mm
Finish Satin Chrome
Primary Measuring Range Upper - Inch 2 In
