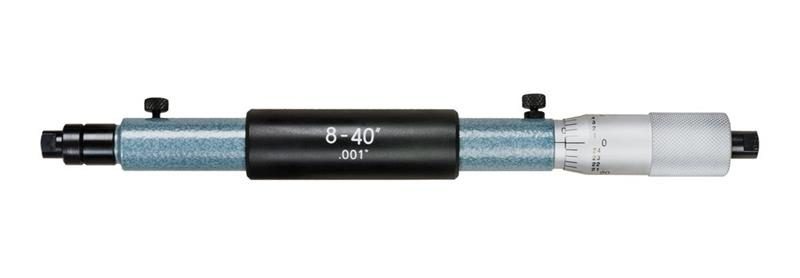

8-40 Inch, .001 Inch, Mechanical Extention Rod Type Inside Micrometer, Extention Rods (8)

  • Item Code: 141-122
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The revolutionary stem-bush design for trouble free stem clamping and longer clamping range.
    • No through screw-hole on the frame for high dust-resistance.
    • Greater rigidity in the bearing plate for reducing the tracing error (20% and 4-scrw mounting fo r incresing impact resistance.

Tech Specs

Back To Top
Range 8 - 40 In
Accuracy ±{.00024+ (.00004xR/2)}
Case Part Number 04MZA103
Individual or Set Individual
Primary Measuring Range Lower - Inch 8 In
Brand Mitutoyo
Measuring Method 2-point
Mechanical or Digital Mechanical
Case Material Plastic Case
Micrometer Head Travel 1 In
Primary Measuring Range Upper - Inch 20 In
Resolution or Graduation .001 In
Finish Satin Chrome
Primary (Outside Diameter) Contact Point Material Carbide
Thimble Diameter Measurement 16mm
