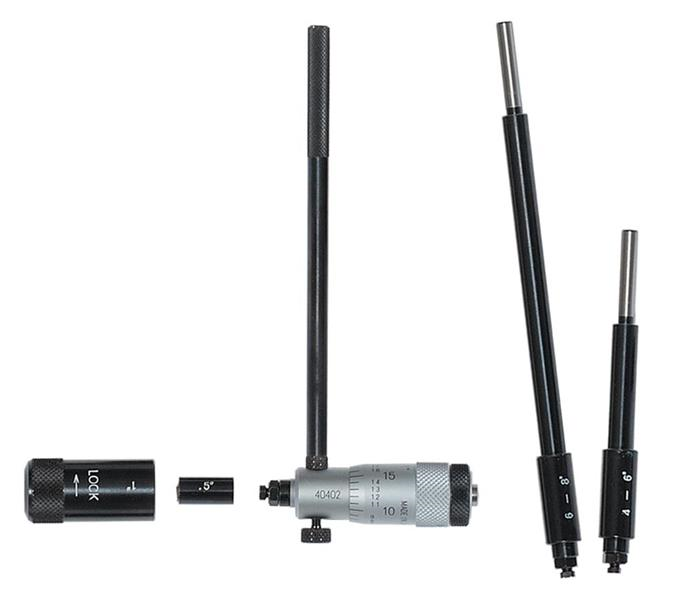

2-8 Inch, .001 Inch, Mechanical Extention Rod Type Inside Micrometer, Extention Rods (3)

  • Item Code: 141-208
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Each interchangeable rod is marked with its measuring range.
    • Micrometer head and furnished rods are satin-chrome finished throughout.
    • Wide range of ID measurements with interchangeable rods.

Tech Specs

Back To Top
Case Part Number 04MZA099
Range 2 - 8 In
Accuracy ±{.00024+ (.00004xR/2)}
Individual or Set Individual
Primary Measuring Range Lower - Inch 2 In
Finish Satin Chrome
Primary Measuring Range Upper - Inch 8 In
Resolution or Graduation .001 In
Thimble Diameter Measurement 16mm
Brand Mitutoyo
Measuring Method 2-point
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Micrometer Head Travel .5 In
Case Material Plastic Case
