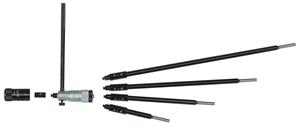

2-12 Inch, .001 Inch, Mechanical Extention Rod Type Inside Micrometer, Extention Rods (5)

  • Item Code: 141-233
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Each interchangeable rod is marked with its measuring range.
    • Micrometer head and furnished rods are satin-chrome finished throughout.
    • Wide range of ID measurements with interchangeable rods.

Tech Specs

Back To Top
Case Part Number 04MZA100
Individual or Set Individual
Resolution or Graduation .001 In
Primary Measuring Range Lower - Inch 2 In
Primary Measuring Range Upper - Inch 12 In
Range 2 - 12 In
Brand Mitutoyo
Case Material Plastic Case
Measuring Method 2-point
Accuracy ±{.00024+ (.00004xR/2)}
Mechanical or Digital Mechanical
Micrometer Head Travel .5 In
Primary (Outside Diameter) Contact Point Material Carbide
Thimble Diameter Measurement 16mm
Finish Satin Chrome
