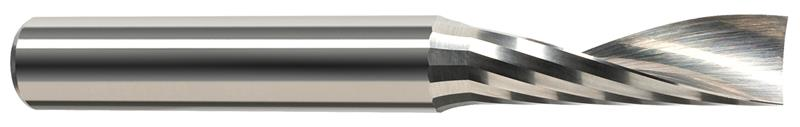

0.0625 in. (1/16) Cutter Diameter x 0.2500 in. (1/4) Length of Cut 1 Flute Carbide Square Upcut End Mill

  • Item Code: 14104-20
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Plastics

Features Tech Specs

Features

Back To Top
    • 2x the material removal with improved finish over standard end mills!
    • Design allows for maximum stock removal while maintaining excellent finish
    • High rake, high relief design produces sharper edge for improved shearing action while transferring heat into the chip
    • Large flute valley creates room for the chip and aids in chip evacuation
    • Slower helix reduces lifting forces, making design preferable for fiber-reinforced applications and vacuum table setups
    • Select sizes available with oversized, router-style shanks
    • High flute finish resists chip welding
    • Will ramp or plunge if required
    • Right hand spiral, right hand cut
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Fractional Diameter 1/16"
Brand Harvey Tool
Coating/Finish None
Number of Flutes 1
Overall Length 2.0000" (2)
Length of Cut 0.2500" (1/4)
Decimal Diameter 0.0625"
Length of Cut Multiple (4x)
Material Solid Carbide
Shank Diameter 0.2500" (1/4)
