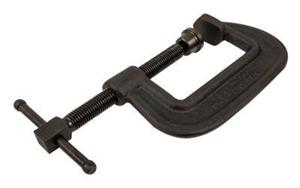

0 - 3 Inch Opening Capacity, Heavy-Duty 100 Series Forged C-Clamp

  • Item Code: 14128-JPW
  • Brand: Wilton
  • Unit Size: 1

Description

Wilton® Brute Force™ 100 Series C-Clamps are ideal for heavy construction with a drop forged frame, black oxide coating, and clamping pressure ranging up to 15,000 lbs. Spindles are full length, machined from a single piece of square, cold drawn steel tempered and hardened. Square spindle heads stand up to heavy wrench tightening.

Features Tech Specs

Features

Back To Top
    • Recommended for heavy industrial and construction job site demands, the heavy-duty models are some of the toughest products available for their weight to strength ratio
    • 100 Series model frames are forged of superior quality steels
    • Forged square head spindle with rolled thread. Black oxide coating for added strength
    • Perma-Pads� are standard and are also black-oxide coated

Tech Specs

Back To Top
Clamping Force (lbs) 8,750
Gross Weight (lbs.) 2.65
Model Number 103
UPC 019907141280
Opening Capacity Max (In.) 0 - 3
Throat Depth (In.) 2
Brand Wilton
Spindle Diameter (In.) 5/8
Country of Origin US
