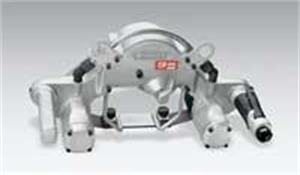

2.4 hp, Straight-Line, 13,000 RPM, Rear Exhaust, for 2 Inch W x 45 Inch L (51 mm x 1143 mm) Belts, Dynangle II Abrasive Belt Tool, Dual Motor w/Platen

  • Item Code: 14306-DYNABRADE
  • Brand: Dynabrade
  • Unit Size: 1

Description

Polish, grind contours and flats. Surface conditions stainless steel and most other metals. Also used on wood, plastic, fiberglass and composites. Blends and finishes solder seams. Built-in abrasive belt guard; fast belt change.

Features Tech Specs

Features

Back To Top
    • Heavy-Duty 'Dual Motor' with Platen, offers extra power. Uses 2" x 45" belts; belts spans 17" for polishing pipe up to 48" diameter.
    • Includes 2" wide x 6" long platen which is easily removed for strap polishing.

Tech Specs

Back To Top
Belt Size Inches (mm) 2" (51) W x 45" (1,143) L
Height Inches (mm) 9-1/2" (241)
Length Inches (mm) 22-7/8" (581)
Motor Free Speed (RPM) 13,000
Brand Dynabrade
Exhaust Type Rear Exhaust
Max. SFPM (SM/Min.) 8,500 (2,591)
Air Inlet Thread 1/2" NPT
hp (W) 2.0 (1,492)
Motor Style Straight-Line
Hose I.D. Size Inches (mm) 1/2" (13)
