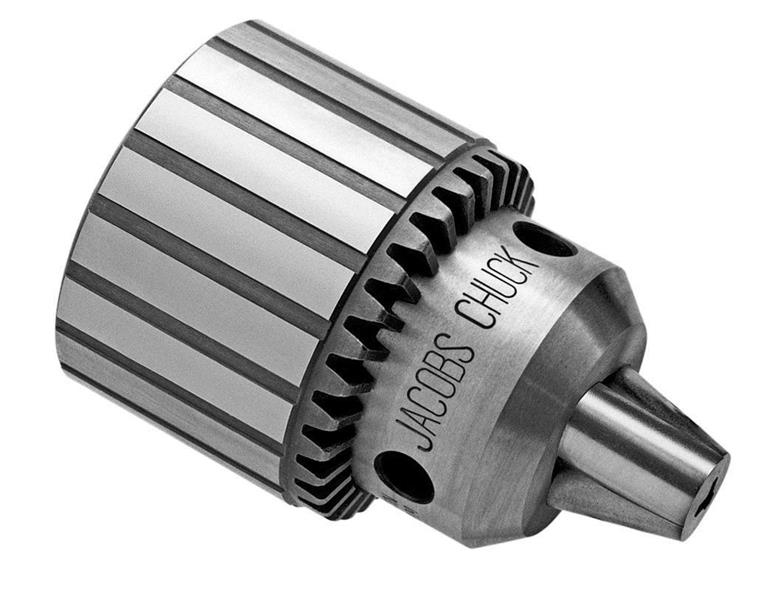

34-33C Plain Bearing Heavy Duty 1/2 Inch Chuck

  • Item Code: 14451
  • Brand: Jacobs
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Jaws Center-Ground for Absolute Straightness and Alignment.
    • One-Piece Sleeve Eliminates Crack Between Driving Teeth Often Found in Other Designs.
    • Through-Hardened Sleeve Teeth, Plus Hardened Nose and Keyholes Provide Outstanding Wear Resistance.
    • Each Chuck 100% Inspected for Performance and Precision.
    • T.I.R. .004�� Maximum at Half Capacity.
    • Kd Models Have Keyed Drive Feature
    • Pd Models Have Pin Drive Feature
    • 34-33C Has Smooth Sleeve with Locking Collar.

Tech Specs

Back To Top
Closed Length 3.71 in
Key Number K3C
Long Description 34-33C Plain Bearing Heavy Duty 1/2" Chuck
Model Number 34-33C
Open Length 2.93 in
Sleeve Outer Diameter 2.00 in
UPC 095456144514
Weight (Catalog) 1.63 lb
Type Chucks
Application Machine Tool
Maximum Capacity 0.500 in
Brand Jacobs
Mount 33JT
Packaging Boxed
Minimum Capacity 0.040 in
Country of Origin China
