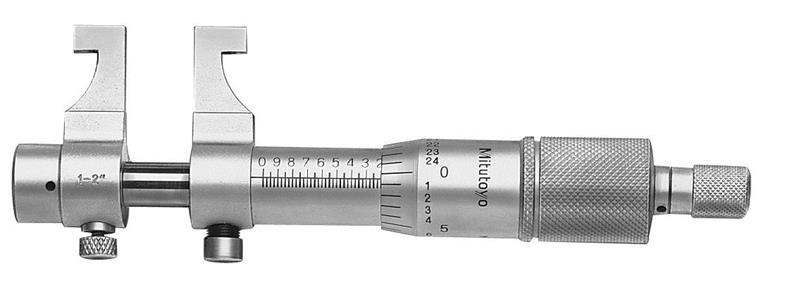

1 Inch - 2 Inch, 0.001 Inch, Mechanical Caliper Jaw Type Micrometer, Carbide Steel Tip, Locking Clamp, Ratchet Stop

  • Item Code: 145-194
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Caliper type jaws are made of high-grade, tool steel
    • Locking clamp for positive locking of spindle.
    • Satin-Chrome finished.

Tech Specs

Back To Top
Brand Mitutoyo
Measuring Method 2-point
Resolution or Graduation .001 In
Clutch Ratchet Stop
Primary Measuring Range Lower - Inch 1 In
Range 1 - 2 In
Accuracy ±.0003 In
Finish Satin Chrome
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Upper - Inch 2 In
Case Material Plastic Case
Individual or Set Individual
Mechanical or Digital Mechanical
Thimble Diameter Measurement 18mm
