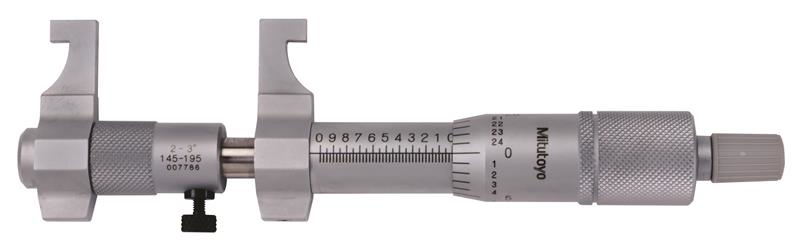

2-3 Inch, .001 Inch, Mechanical Caliper Jaw Type Micrometer, Carbide Steel Tip, Locking Clamp, Ratchet Stop, With Standard

  • Item Code: 145-195
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Caliper type jaws are made of high-grade, tool steel
    • Locking clamp for positive locking of spindle.

Tech Specs

Back To Top
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Accuracy ±.00035 In
Range 2 - 3 In
Case Material Plastic Case
Finish Satin Chrome
Clutch Ratchet Stop
Primary Measuring Range Lower - Inch 2 In
Individual or Set Individual
Measuring Method 2-point
Resolution or Graduation .001 In
Thimble Diameter Measurement 18mm
Primary Measuring Range Upper - Inch 3 In
