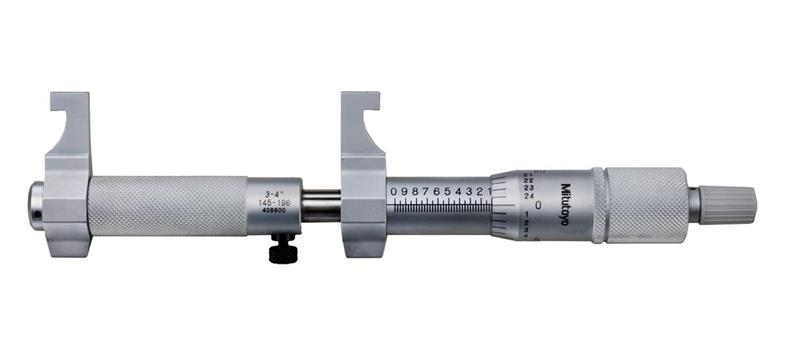

3-4 Inch, .001 Inch, Mechanical Caliper Jaw Type Micrometer, Carbide Steel Tip, Locking Clamp, Ratchet Stop, With Standard

  • Item Code: 145-196
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Caliper type jaws are made of high-grade, tool steel
    • Locking clamp for positive locking of spindle.

Tech Specs

Back To Top
Accuracy ±.0004 In
Individual or Set Individual
Primary Measuring Range Upper - Inch 4 In
Case Material Plastic Case
Brand Mitutoyo
Mechanical or Digital Mechanical
Resolution or Graduation .001 In
Thimble Diameter Measurement 18mm
Measuring Method 2-point
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 3 In
Range 3 - 4 In
Clutch Ratchet Stop
Finish Satin Chrome
