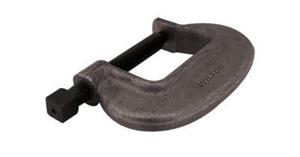

0 - 12-1/4 Inch Jaw Opening, 4-1/4 Inch Throat Depth, Brute Force - 0 Series Model 12 F.C., Full Closing Spindle Bridge C-Clamp

  • Item Code: 14599
  • Brand: Wilton
  • Unit Size: 1

Description

Wilton® Brute Force™ Bridge C-Clamps are ideal for heavy construction and fabrication. Brute Force C-Clamps boast a drop forged frame, black oxide coating, and clamping pressure ranging up to 40,000 lbs. Spindles are full length, machined from a single piece of square, cold drawn steel tempered and hardened. Square spindle heads stand up to heavy wrench tightening.

Features Tech Specs

Features

Back To Top
    • The full closing, extra heavy duty models are designed to stand up to the demands of heavy industrial applications like those encountered in ship building
    • Hot upset square head on spindle withstands higher torque
    • Square-head spindle has large diameter rolled thread and hardened point which provides smoother operation and added strength
    • Black oxide coated spindle resists corrosion
    • Clamping pressure ranging up to 40,000 lbs.

Tech Specs

Back To Top
Clamping Force (lbs) 40,000
Gross Weight (lbs.) 43.7
Model Number 12-FC
Opening Capacity Max (In.) 0 - 12-3/8
Throat Depth (In.) 4-1/4
UPC 019907145998
Spindle Diameter (In.) 1-1/4
Brand Wilton
Country of Origin US
